Midea MFYA400-24ARFN1-Q / MOX401UL-24AFN1-Q is a 24,000 BTU DC inverter floor-standing air conditioner designed for residential and commercial premises. Its cylindrical construction, wide vertical airflow and touch-control panel distinguish it from conventional cabinet-type air conditioners.
The system provides 7.03 kW of nominal cooling and 7.62 kW of heating capacity. DC inverter technology adjusts compressor output according to the actual room load, supporting stable temperature control and reduced compressor cycling.
Cooling capacity can modulate between 0.69 and 8.53 kW, while heating capacity ranges from 2.81 to 9.79 kW. Seasonal efficiency is rated A++ for cooling and A+ for heating, with SEER 6.1 and SCOP 4.0.
The indoor unit delivers 990/640 m³/h of airflow, while its sound-pressure level ranges from 39.5 to 34.5 dB(A). An integrated touch panel provides convenient control of temperature, fan speed and operating mode.
Self-diagnosis and automatic protection help identify abnormal operation. PrimeGuard coating protects the heat exchanger against moisture and corrosion. Wi‑Fi is not built in but can be added optionally using a compatible DW11-BL controller.
Technical specifications:
- Indoor unit: MFYA400-24ARFN1-Q

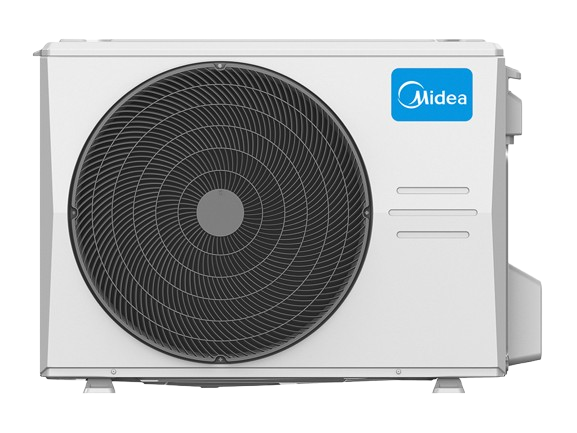

- Outdoor unit: MOX401UL-24AFN1-Q
- Technology: DC inverter
- Recommended area: approximately 70 m²
- Cooling capacity: 7.03 kW, range 0.69–8.53 kW
- Heating capacity: 7.62 kW, range 2.81–9.79 kW
- Cooling power input: 2.34 kW
- Heating power input: 2.00 kW
- SEER/cooling class: 6.1/A++
- SCOP/heating class: 4.0/A+
- Power supply: 220–240 V / single-phase / 50 Hz
- Airflow rate: 990/640 m³/h
- Indoor sound level: 39.5/34.5 dB(A)
- Refrigerant: R410A, 1.95 kg
- Liquid/gas pipes: 6.35/12.7 mm
- Maximum pipe length: 50 m
- Maximum height difference: 25 m
- Indoor-unit dimensions and weight: 405 × 1775 × 405 mm, 29.9 kg
- Outdoor-unit dimensions and weight: 890 × 673 × 342 mm, 44.7 kg
- Cooling operating range: −15°C to +50°C
- Heating operating range: −15°C to +24°C
- Optional Wi‑Fi control
