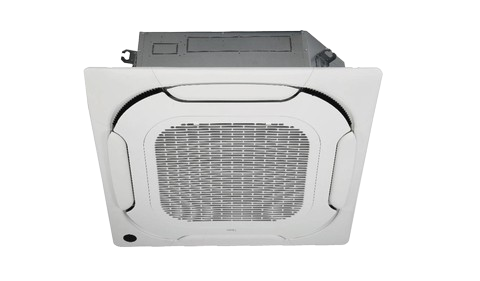

Midea MCD1-48HRN1-R 48000 BTU Cassette Air Conditioner

Key features:

• Indoor unit: MCD1-48HRN1-R
• Outdoor unit: MOU1-48HN1-R
• Type: On/Off cassette air conditioner
• Capacity class: 48,000 BTU
• Cooling capacity: 14.08 kW
• Heating capacity: 15.25 kW
• Cooling input: 5.20 kW
• Heating input: 4.80 kW
• EER: 2.71
• COP: 3.20
• Inverter: No
• Compressor: Panasonic Scroll
• Refrigerant: R410A
• Refrigerant charge: 3.30 kg
• Indoor supply: 220 V / 50 Hz / single phase
• Outdoor supply: 380 V / 50 Hz / three phase
• Indoor airflow: 1620–1916 m³/h
• Indoor sound level: 50–54 dB
• Drain pipe: Ø25 mm
• Integrated drain pump: up to 750 mm lift
• Liquid pipe: Ø9.52 mm
• Gas pipe: Ø19 mm
• Maximum piping length: 50 m
• Maximum elevation difference: 30 m
• Indoor dimensions: 830 × 245 × 830 mm
• Indoor net weight: 28.3 kg
• Outdoor dimensions: 900 × 1170 × 350 mm
• Outdoor net weight: 98.6 kg
• Outdoor airflow: 6000 m³/h
• Outdoor noise: 62 dB
• Cooling ambient range: +18°C to +43°C
• Heating ambient range: -7°C to +24°C
• Multi-directional airflow
• Fresh Air connection
• Auto Restart
• Auto Defrost
• Night Mode
• Dry Mode
• Refrigerant Leakage Detection
• Self-Diagnosis
• Low Noise operation
• LED display
• Optional wired controller
• Optional Wi-Fi module
• Optional central group control
• Standard panel: T-MBQ4-04A1
• Panel size: 950 × 55 × 950 mm
• Panel weight: 6 kg.

Midea MCD1-48HRN1-R / MOU1-48HN1-R is a 48,000 BTU On/Off cassette air-conditioning system designed for offices, restaurants, hotels, retail stores, showrooms and other large commercial interiors. The indoor cassette chassis is recessed into the suspended ceiling, leaving the decorative air-distribution panel visible inside the room.

The system provides 14.08 kW cooling and 15.25 kW heating capacity. Rated electrical input is 5.20 kW in cooling and 4.80 kW in heating, with EER 2.71 and COP 3.20. The MOU1-48HN1-R uses a Panasonic Scroll fixed-speed On/Off compressor, so this model should not be described as an inverter air conditioner.

Midea specifies air outlet in all directions and wide-angle airflow for this model, supporting broad distribution of conditioned air across larger spaces. Fresh Air connection, Auto Restart, automatic defrost, Night Mode, refrigerant leakage detection and self-diagnosis are also included among its functions.

The built-in condensate pump provides a lifting height of up to 750 mm, which gives installers additional flexibility when routing drainage above a suspended ceiling. Blue Fin protection, a hydrophilic-coated aluminium heat exchanger and low-noise operating technology are also listed for the system.

The MOU1-48HN1-R outdoor unit uses R410A refrigerant, with a factory charge of 3.30 kg, and requires a 380 V / 50 Hz three-phase supply. Maximum refrigerant piping length is 50 metres, with a maximum vertical difference of 30 metres.

At Euroclima, Midea MCD1-48HRN1-R / MOU1-48HN1-R can be presented as a high-capacity commercial cassette solution combining concealed ceiling installation, strong airflow and reliable cooling and heating performance.
