Key features:
- Indoor unit: MCD-24FNXD0
- Outdoor unit: MOU-24FN1-QD0
- Type: Inverter cassette split system
- Capacity class: 24,000 BTU
- Nominal cooling: approx. 7.0 kW
- Cooling range: 1.20–8.21 kW
- Nominal heating: approx. 7.0 kW
- Heating range: 1.20–8.65 kW
- Cooling energy class: A++
- SEER: 6.1
- SCOP: 4.0–5.1 depending on climate condition
- Compressor: GMCC Rotary Inverter
- Refrigerant: R410A
- Refrigerant charge: 1.95 kg
- Power supply: 220 V / 50 Hz / single phase
- Liquid pipe: Ø9.52 mm
- Gas pipe: Ø15.90 mm
- Maximum piping length: 50 m
- Maximum elevation difference: 25 m
- Indoor airflow: 1100–1450 m³/h
- Indoor sound pressure: 39–46 dB(A)
- Drain pipe: Ø32 mm
- Integrated drain pump: up to 750 mm lift
- Indoor dimensions: 840 × 245 × 840 mm
- Indoor net weight: 24 kg
- Panel: White
- Panel dimensions: 950 × 50 × 950 mm
- Panel weight: 5 kg
- Outdoor dimensions: 845 × 702 × 363 mm
- Outdoor net weight: 49 kg
- Outdoor airflow: 2700 m³/h
- Cooling operation: -15°C to +50°C
- Heating operation: -15°C to +24°C
- 360° airflow
- Fresh Air connection
- Auto Restart
- Auto Defrost
- Refrigerant Leakage Detection
- Night Mode
- Low Noise function
- Optional wired controller
- Optional Wi-Fi
- Optional central control
Midea MCD-24FNXD0 / MOU-24FN1-QD0 is a 24,000 BTU inverter cassette air-conditioning system designed for recessed installation in suspended ceilings. Most of the indoor chassis remains concealed above the ceiling, leaving only the decorative air-distribution panel visible. This makes the system suitable for offices, restaurants, hotels, retail stores, showrooms and other commercial interiors.
The system operates across a cooling capacity range of 1.20–8.21 kW and a heating range of 1.20–8.65 kW, with a nominal output of approximately 7.0 kW for this capacity class. Cooling seasonal efficiency is rated at SEER 6.1 and Energy Class A++.
Its cassette design provides 360° air distribution, allowing conditioned air to spread broadly from ceiling level. Indoor airflow ranges from approximately 1100 to 1450 m³/h, while sound pressure ranges from 39 to 46 dB(A), depending on fan speed.
An integrated condensate pump can lift drainage water by up to 750 mm. The system also supports Fresh Air connection, Auto Restart, automatic defrosting, refrigerant leakage detection and Night Mode. Wired control, centralised control and a Wi-Fi module are available as optional control solutions.

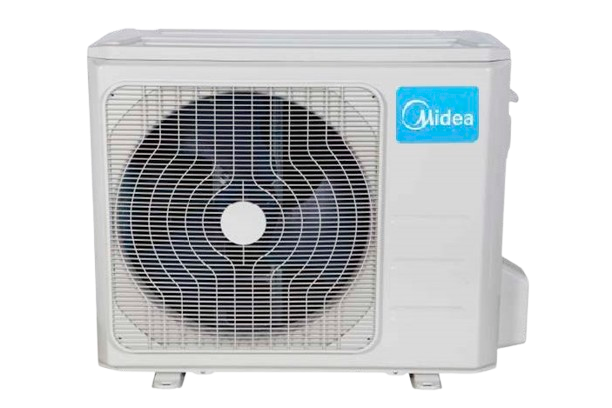

The MOU-24FN1-QD0 outdoor unit uses R410A refrigerant and a GMCC rotary inverter compressor. Refrigerant piping can extend up to 50 metres, with a maximum elevation difference of 25 metres. Outdoor operating limits extend from -15°C to +50°C in cooling and -15°C to +24°C in heating.
At Euroclima, Midea MCD-24FNXD0 / MOU-24FN1-QD0 can be offered as a professional cassette HVAC solution combining inverter performance, concealed ceiling installation and broad 360° air distribution.
