Key features:
- Brand: Midea
- Indoor unit: MCD-60HRN1-R
- Official archived outdoor pairing: MOUA-60HN1-R
- Type: On/Off cassette air conditioner
- Capacity class: 60,000 BTU
- Cooling capacity: 16.1 kW in Midea Ukraine specification
- Heating capacity: 17.0 kW in Midea Ukraine specification
- Alternative regional rating: 55,000 BTU cooling / 61,000 BTU heating
- Inverter: No
- Compressor: Panasonic Scroll
- Refrigerant: R410A
- Refrigerant charge: approx. 3.2–3.3 kg depending on regional version
- Outdoor power supply: 380 V / 50 Hz / three phase
- Liquid pipe: Ø9.52 mm
- Gas pipe: Ø19 mm
- Maximum piping length: 50 m
- Maximum elevation difference: 25–30 m depending on version
- Indoor airflow: 1650–2200 m³/h
- Indoor noise level: 46–57 dB
- Drain connection: Ø32 mm
- Indoor dimensions: 840 × 287 × 840 mm
- Indoor net weight: 29 kg
- Outdoor dimensions: 938 × 1369 × 392 mm in the archived Ukraine configuration
- Outdoor net weight: 107 kg
- Outdoor airflow: 6850 m³/h
- 360° airflow
- Built-in drain pump
- Auto Restart
- Auto Defrost
- Night Mode
- Dry Mode
- Self-Diagnosis
- Optional wired controller
- Optional central group control
- Decorative panel: T-MBQ4-04A1
- Panel colour: White
- Panel dimensions: 950 × 55 × 950 mm
- Panel weight: 6 kg.

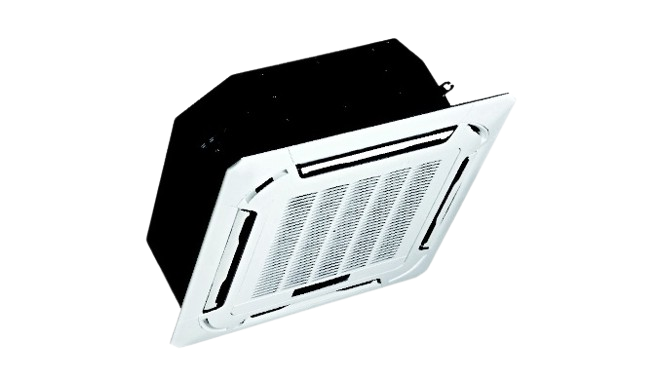

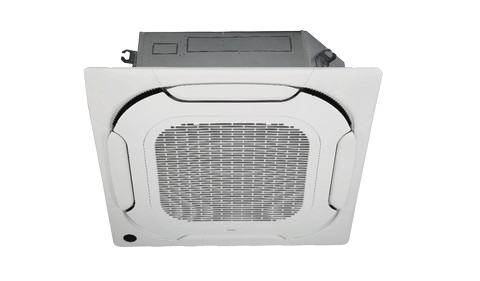

Midea MCD-60HRN1-R is a high-capacity On/Off cassette air-conditioning system intended for larger commercial spaces such as offices, restaurants, hotels, retail stores, showrooms and business centres. Its cassette chassis is installed above the suspended ceiling, keeping most of the indoor equipment concealed.
This model is not an inverter system. Midea's archived technical documentation identifies the outdoor system as an On/Off configuration using a Panasonic Scroll compressor and R410A refrigerant.
Midea's Ukraine documentation lists approximately 16.1 kW cooling and 17.0 kW heating, while another official regional specification lists 55,000 BTU cooling and 61,000 BTU heating. Therefore, “60,000 BTU” is best treated as the commercial capacity class, while the exact rating should follow the nameplate of the supplied regional version.
The cassette provides 360° air distribution and includes functions such as a built-in drain pump, Auto Restart, automatic defrosting, Night Mode, Dry Mode and self-diagnosis. Optional wired and centralised control solutions are also supported in the archived product family.
The refrigerant circuit uses R410A, with Ø9.52 mm liquid and Ø19 mm gas piping. Maximum refrigerant piping is 50 metres in the archived specification, while the outdoor section requires a three-phase 380 V supply.
The T-MBQ4-04A1 is a decorative cassette panel rather than a remote controller. Midea identifies it as a white traditional panel measuring 950 × 55 × 950 mm and weighing 6 kg in compatible MCD1 cassette configurations.
At Euroclima, Midea MCD-60HRN1-R can be positioned as a professional high-capacity cassette solution for commercial environments requiring concealed ceiling installation and broad air distribution.
