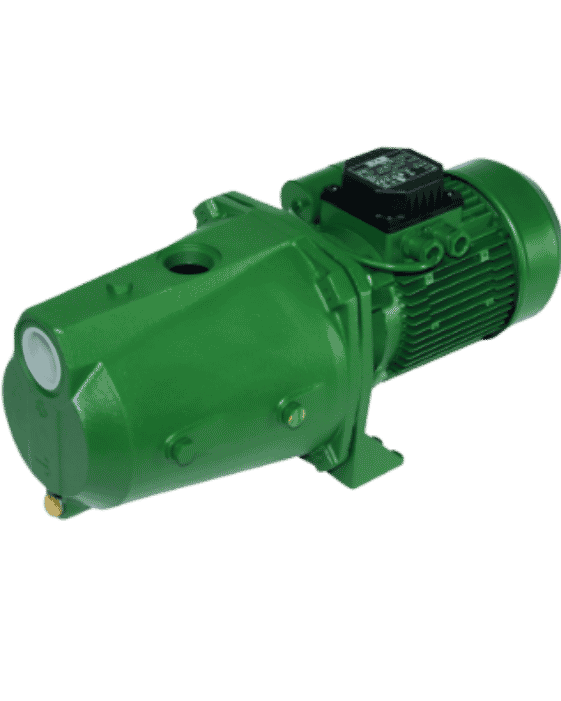

DAB JET 300 M self-priming water pump is designed for water supply in homes, gardens, farms and small commercial facilities. It is suitable for irrigation systems, pool filling, water transfer from tanks and domestic water supply applications. Its strong suction capability and durable cast iron body make it a reliable solution for long-term use.
The pump can draw water from a suction depth of up to 8 meters and provides a maximum head of up to 51 meters. With 2700 W maximum power and 10.7 m³/h maximum flow rate, this model is suitable for systems that require strong water pressure. DAB JET 300 M operates with 1x230V power supply and offers easy installation for individual users.
This model is intended for clean, chemically neutral and non-aggressive liquids. The motor includes overheating protection, while IP44/IP55 protection ratings support safe operation. For users looking for a powerful DAB water pump for home, garden and irrigation needs, DAB JET 300 M is a practical and high-performance choice.

Features

• Model: DAB JET 300 M
• Product type: Self-priming water pump
• Connection diameter: 1 1/4”
• Suction port diameter: 1 1/2” G
• Discharge port diameter: 1 1/4” G
• Maximum suction depth: 8 m
• Maximum head: 51 m
• Maximum flow rate: 10.7 m³/h
• Maximum power: 2700 W
• Nominal power P2: 2200 W
• Voltage: 1x230V
• Nominal current: 12 A
• Maximum operating pressure: 8 bar
• Maximum liquid temperature: 40°C
• Ambient temperature: 40°C
• Protection class: motor IP44, terminal box IP55
• Insulation class: F
• Capacitor: 40 µF
• Connection type: Threaded
• Motor type: Asynchronous motor
• Overheating protection: Yes
• Installation position: Horizontal
• Height: 235 mm
• Length: 595 mm
• Width: 214 mm
• Weight: 13.4 kg
• Application: Home water supply, garden irrigation, pool filling, tank and well systems
