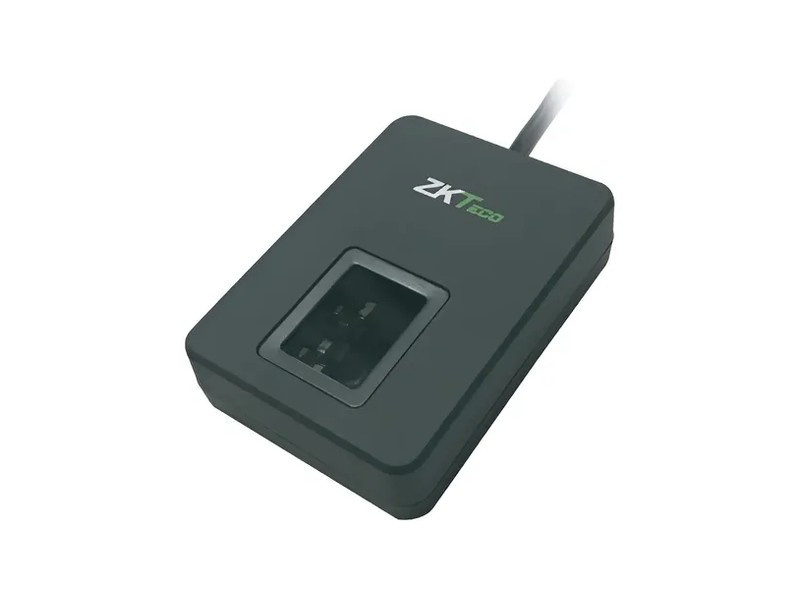

ZKTeco ZK9500 — fingerprint sensor
ZKTeco ZK9500 — fingerprint sensor
Stokda var
Key technical specifications
| Model | ZKTeco ZK9500 |
|---|---|
| Device type | USB optical fingerprint scanner |
| Biometric sensor and algorithm | 2 MP CMOS, 280 MHz DSP, 32 MB Flash |
| Scanning specifications | 500 DPI; 15.24 × 20.32 mm FAP20 area; 300 × 400 pixels |
| Communication interfaces | USB 2.0/1.1, USB Type-A |
| Power supply | USB 5 V; 200 mA scanning, 60 mA idle |
| Operating environment | −20 to +50°C; up to 90% RH |
| Dimensions | 75.5 × 53.2 × 19 mm |
Technical note: When selecting a reader, card frequency, output protocol, reading distance and outdoor rating must match the control panel.
