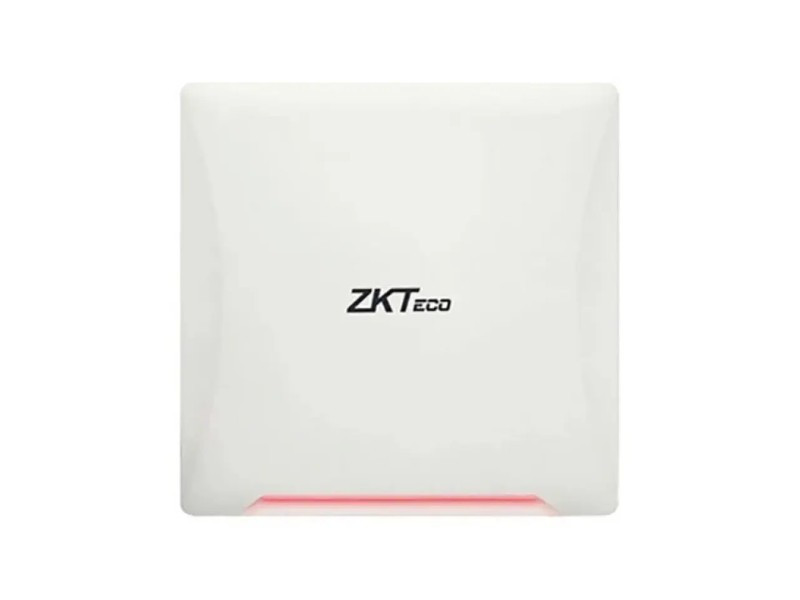

ZKTeco UHF-5E Pro — UHF access reader
ZKTeco UHF-5E Pro — UHF access reader
Stokda var
Key technical specifications
| Model | ZKTeco UHF-5E Pro |
|---|---|
| Device type | Long-range UHF RFID access reader |
| Operating frequency | 865–868 MHz (E version) |
| Reading distance | 5–6 m class depending on installation and tag |
| Communication interfaces | Wiegand, RS485 and USB configuration |
| Power supply | 9–15 V DC; approximately 1.2–4.2 W |
| Ingress / impact protection | IP66 |
| Operating environment | −20 to +65°C |
| Dimensions | 308.5 × 308.5 × 67.5 mm; 1.8 kg |
Technical note: When selecting a reader, card frequency, output protocol, reading distance and outdoor rating must match the control panel.
