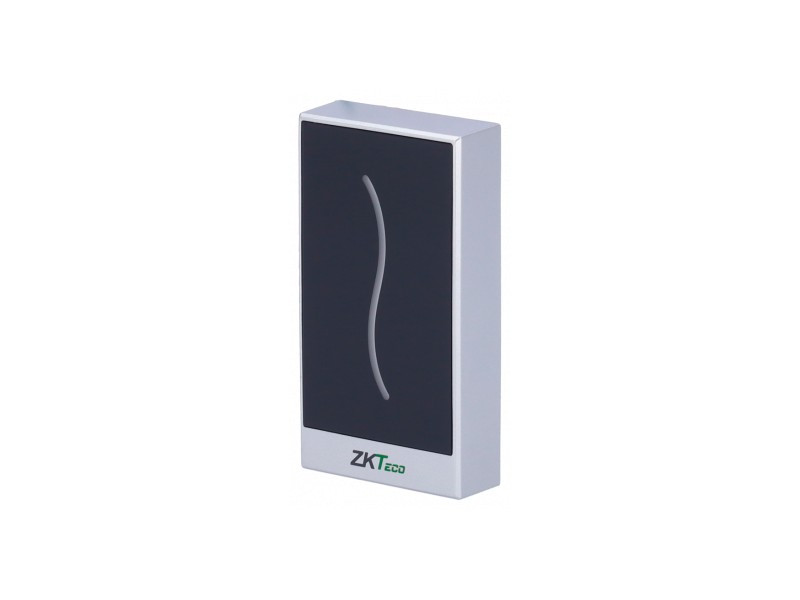

ZKTeco ProID10 — ID card reader
ZKTeco ProID10 — ID card reader
Stokda var
Key technical specifications
| Model | ZKTeco ProID10 |
|---|---|
| Device type | Outdoor Wiegand RFID card reader |
| Reading distance | 3.5 cm |
| Reading / verification time | ≤300 ms |
| Output format | Field-adjustable Wiegand 26/34 bit |
| Power supply | 7–13 V DC; <80 mA |
| Ingress / impact protection | IP65 |
| Operating environment | −20 to +65°C; 10–90% RH |
| Dimensions | 80.5 × 44 × 15 mm |
| Card technology | 125 kHz ID/EM card |
Technical note: When selecting a reader, card frequency, output protocol, reading distance and outdoor rating must match the control panel.
