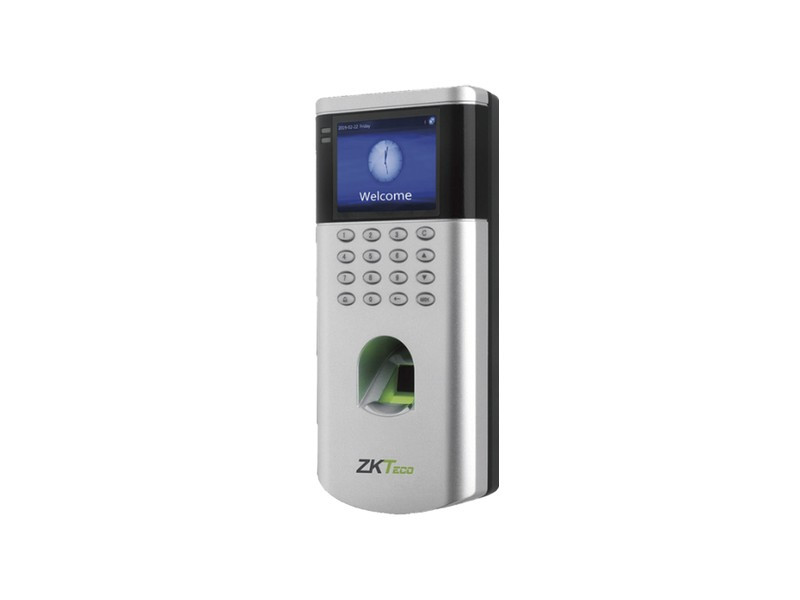

ZKTeco LF10 — fingerprint reader
ZKTeco LF10 — fingerprint reader
Stokda var
Key technical specifications
| Model | ZKTeco LF10 |
|---|---|
| Device type | Fingerprint and card access terminal |
| Display | 2.4-inch colour TFT |
| Fingerprint capacity | 1,500 templates |
| Card capacity | 5,000 ID/Mifare cards (optional) |
| Event / log capacity | 80,000 records |
| Communication interfaces | TCP/IP and USB Host |
| Wiegand / reader interface | Wiegand output |
| Access control interfaces | Lock relay output, alarm and doorbell |
| Power supply | 12 V DC, 1.5 A |
| Operating environment | 0 to 45°C; 20–80% RH |
| Dimensions | 83 × 180.09 × 33.2 mm |
Technical note: When selecting a reader, card frequency, output protocol, reading distance and outdoor rating must match the control panel.
