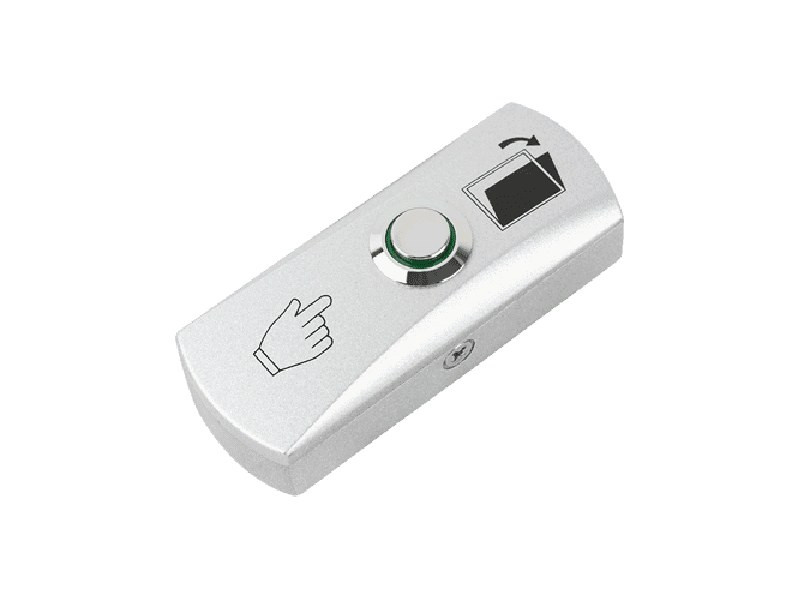

ZKTeco EX-803L — exit button
ZKTeco EX-803L — exit button
Stokda var
Key technical specifications
| Model | ZKTeco EX-803L |
|---|---|
| Device type | Narrow metal mechanical exit button |
| Operating mode | Dry contact for door release by pressing |
| Housing material | Metal panel |
| Operating environment | Maximum operating temperature approximately +50°C |
| Dimensions | 83 × 32 × 25 mm |
| Compatibility | Access panels and lock relay circuits |
Technical note: Before installation, verify the contact type, current load and compatibility of the box with the wall or door construction.
