DAB MICRA Submersible Borehole Pump
DAB MICRA Submersible Borehole Pump

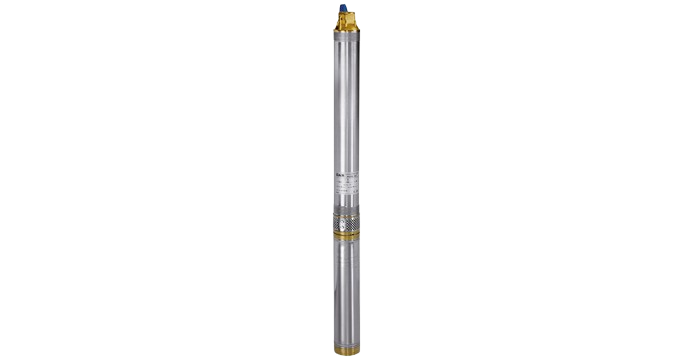

DAB MICRA is a multistage submersible electric pump designed for boreholes with a diameter of 3 inches or larger. Its compact construction and 74 mm pump diameter make it suitable for lifting and distributing water from narrow boreholes, tanks and cisterns.
The pump can be used in domestic and industrial water-supply systems, for filling pressure vessels and storage tanks, pressure-boosting applications, irrigation systems and clean-water transfer. Depending on the model, it provides a flow rate from 0.3 to 2.7 m³/h and a maximum head of up to 90 metres.
DAB MICRA features a multistage centrifugal hydraulic system designed to provide stable water flow and high pressure. Its impellers are manufactured from Noryl, while the diffusers are made from self-lubricating polyacetal. The pump liner, shaft, strainer and cable guard are manufactured from stainless steel. The brass delivery head incorporates a non-return valve.
The submersible motor is manufactured from AISI 304 stainless steel and features IP68 protection, class F insulation and an automatic-reset thermal protector. The pump is designed primarily for vertical installation. For horizontal installation, the minimum required load on the thrust-bearing assembly must be ensured.
Main features:
• Brand: DAB
• Series: MICRA
• Product type: Multistage submersible borehole pump
• Minimum borehole diameter: 3 inches
• Pump diameter: 74 mm
• Flow range: 0.3–2.7 m³/h
• Maximum head: Up to 90 metres
• Pumped liquid: Clean, non-aggressive and non-abrasive water
• Liquid temperature: From 0°C to +35°C
• Maximum permitted sand content: 40 g/m³
• Discharge connection: 1-inch GAS
• Power-supply tolerance: +6% / −10%
• Maximum starts: 20 per hour
• Protection class: IP68
• Insulation class: F
• Installation: Vertical or horizontal when technical requirements are met
• Installation locations: Boreholes, tanks and cisterns
• Power-supply versions: Single-phase 230 V and three-phase 230/400 V, 50 Hz
• Control box for single-phase versions: Available on request
Available models:
• MICRA 50 M – 0.37 kW, 0.5 HP, head up to 45 metres
• MICRA 75 M/T – 0.55 kW, 0.75 HP, head up to 68 metres
• MICRA 100 M/T – 0.75 kW, 1 HP, head up to 90 metres
