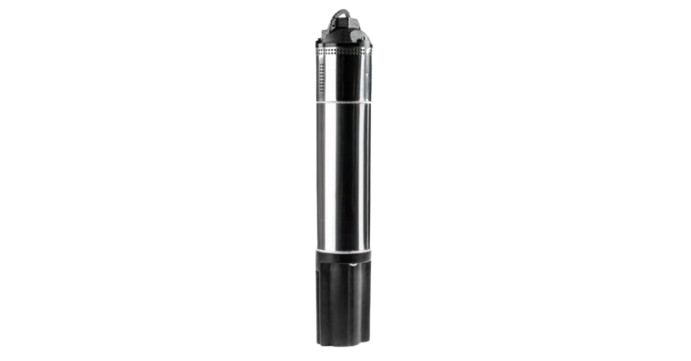

DAB IDEA 4-Inch Submersible Borehole Pump
DAB IDEA 4-Inch Submersible Borehole Pump
DAB IDEA is a monoblock peripheral submersible pump range designed for installation in boreholes measuring 4 inches or larger. Its ability to generate high heads with limited motor power makes it suitable for domestic water supply, small agricultural applications, irrigation, lifting water from tanks and cisterns and pressurising pressure-vessel systems.
IDEA 75 and IDEA 100 models have a single peripheral brass impeller, while IDEA 150 uses two impellers. The operating flow range is 0.4–2.4 m³/h. Maximum head is 39 metres for IDEA 75, 52 metres for IDEA 100 and 90 metres for IDEA 150.
The pump body and motor support are manufactured from cast iron. The impeller is made of brass, while the rotor-shaft extension and inlet strainer are made of stainless steel. The two-pole asynchronous submersible motor has a dry design and is cooled externally by the pumped liquid. Its stator is encapsulated in an AISI 304L stainless-steel casing.
Single-phase M versions are equipped with a capacitor housed inside a strong, electrically insulated plastic enclosure. Suitable overload protection must be provided by the user for three-phase T versions. The pump is supplied with a removable 15-metre H07RN-F power cable and a 15-metre nylon lowering rope.
DAB IDEA is intended for pumping clean liquids that are free from solid or abrasive particles, non-viscous, non-aggressive, non-crystallised and chemically similar to water.
Main features
- Brand: DAB
- Models: IDEA 75, IDEA 100 and IDEA 150
- Versions: M – single-phase, T – three-phase
- Pump type: peripheral submersible borehole pump
- Suitable borehole diameter: 4 inches or larger
- IDEA 75 and IDEA 100: single impeller
- IDEA 150: double impeller
- Operating range: 0.4–2.4 m³/h
- IDEA 75 maximum head: 39 metres
- IDEA 100 maximum head: 52 metres
- IDEA 150 maximum head: 90 metres
- Rated output range: 0.55–1 kW
- IDEA 75 rated output: 0.55 kW / 0.75 HP
- IDEA 100 rated output: 0.75 kW / 1 HP
- IDEA 150 rated output: 1 kW / 1.5 HP
- Single-phase power supply: 1 × 230 V, 50 Hz
- Three-phase power supply: 3 × 400 V, 50 Hz
- Power-supply tolerance: +6% / −10%
- Pumped liquid: clean water
- Liquid temperature: 0°C to +35°C
- Maximum immersion depth: 20 metres
- Maximum number of starts: 20 per hour
- Delivery connection: 1" GAS
- Pump diameter: 93 mm
- Protection class: IP68
- Insulation class: F
- Impeller material: brass
- Pump body and motor support: cast iron
- Motor casing: AISI 304L stainless steel
- Rotor and shaft: AISI 431 stainless steel
- Mechanical seal: graphite/alumina
- Additional lip seal
- Power cable: removable 15-metre H07RN-F
- Nylon lowering rope: 15 metres
- Installation position: vertical
- Installation: boreholes, tanks and cisterns
- Capacitor included with single-phase models
- External motor protection required for three-phase models
- Weight range: 10.2–15 kg
