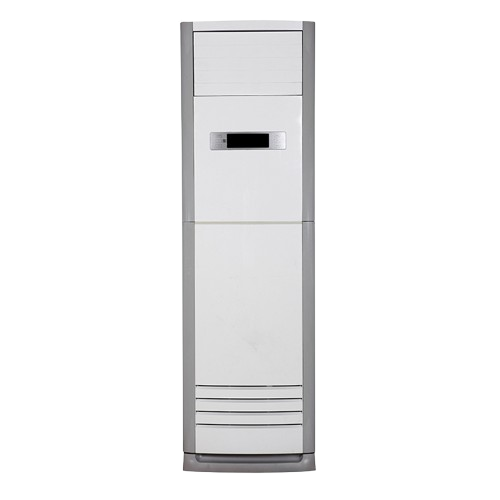

Midea MFTJ-36HRN1-Q / MOUF-36HN1-Q 36,000 BTU Floor-standing Air Conditioner
Midea MFTJ-36HRN1-Q / MOUF-36HN1-Q 36,000 BTU Floor-standing Air Conditioner
Midea MFTJ-36HRN1-Q / MOUF-36HN1-Q is a 36,000 BTU floor-standing split air conditioner designed for cooling and heating large residential and commercial spaces. Its powerful airflow and vertical floor-mounted design help distribute conditioned air rapidly throughout large open-plan areas.
The model is suitable for restaurants, shops, offices, educational facilities, showrooms, waiting halls, villas and other commercial premises. It provides 10.6 kW of cooling capacity and approximately 10.7 kW of heating capacity.
Midea’s 3D Airflow system combines automatic vertical and horizontal louvre movement to distribute air over a wider area. A large front display provides convenient access to temperature and operating information.
The side air-inlet design maintains a modern appearance, while the removable inlet grille and filter simplify routine cleaning. Self-diagnosis and automatic protection can stop the system during abnormal operation and display an error code for faster troubleshooting.
Main features:
- 36,000 BTU cooling capacity
- Cooling and heating operation
- 3D Airflow
- Automatic vertical and horizontal swing
- Large digital display
- Side air-inlet design
- Easy-to-clean removable filter
- Self-diagnosis
- Automatic system protection
- Fixed-speed On/Off operation
- Remote control
Technical specifications:
- Brand: Midea
- Indoor unit: MFTJ-36HRN1-Q
- Outdoor unit: MOUF-36HN1-Q
- Type: floor-standing split air conditioner
- Compressor operation: fixed-speed On/Off
- Recommended area: approximately 100–108 m²
- Cooling capacity: 36,000 BTU/h – 10.6 kW
- Heating capacity: 36,500 BTU/h – 10.7 kW
- Power supply: 220–240 V / single-phase / 50 Hz
- Indoor airflow: 1491/1211 m³/h
- Indoor sound-pressure level: 54/46 dB(A)
- Outdoor sound-pressure level: 63.5 dB(A)
- Refrigerant: R410A
- Factory refrigerant charge: 2.95 kg
- Liquid pipe diameter: 9.52 mm
- Gas pipe diameter: 19 mm
- Maximum pipe length: 30 m
- Maximum height difference: 20 m
- Indoor-unit dimensions: 540 × 410 × 1825 mm
- Indoor-unit net/gross weight: 50.5/66 kg
- Outdoor-unit dimensions: 946 × 410 × 810 mm
- Outdoor-unit net/gross weight: 73/77.5 kg
- Cooling operating range: +18°C to +43°C
- Heating operating range: −7°C to +24°C
Actual equipment selection should be based on a heat-load calculation considering ceiling height, glazing, solar exposure, occupancy and heat-generating equipment.
