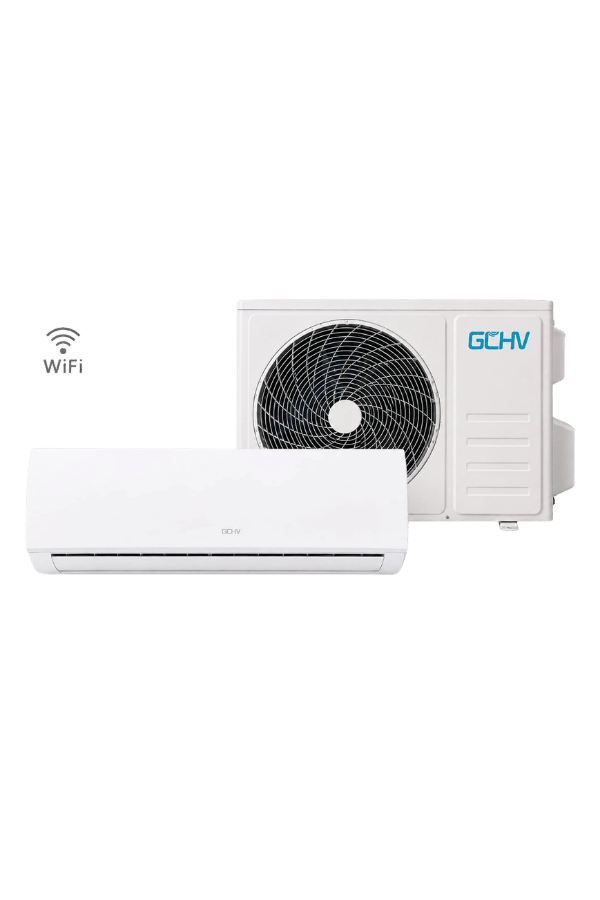

GCHV V09-HR4-S40 9000 BTU Inverter WiFi Air Conditioner

Stokda var

GCHV V09-HR4-S40 9000 BTU Inverter WiFi Air Conditioner

The GCHV V09-HR4-S40 9000 BTU Inverter WiFi air conditioner is a wall-mounted split system designed to maintain a comfortable indoor temperature in homes, bedrooms, home offices, small offices, shops, and other residential or commercial spaces. With a cooling capacity of 9000 BTU, the unit can be used for cooling during hot summer days and heating during colder periods.

The inverter technology of the GCHV air conditioner automatically adjusts the compressor speed according to the indoor temperature. Instead of frequently stopping and restarting at full power like conventional air conditioners, the system operates steadily at the required capacity. This technology helps improve energy efficiency, reduce temperature fluctuations, and maintain a more stable level of comfort in the room.

WiFi Remote Control

One of the main advantages of the GCHV 9000 BTU inverter air conditioner is its built-in WiFi function. Using a compatible mobile application, users can control the air conditioner from a smartphone, change the temperature, select operating modes, and switch the unit on or off remotely.

The WiFi control function is especially useful for adjusting the room temperature before arriving home or at the office. Users can access the air conditioner’s control functions from any location with an internet connection. The model series includes built-in WiFi control, I FEEL, Silent, and Turbo operating modes.

The GCHV V09-HR4-S40 air conditioner has a nominal cooling capacity of 2.6 kW and a nominal heating capacity of 2.8 kW. The model has an A++ energy efficiency rating for cooling and an A+ rating for heating. These performance indicators help optimize electricity consumption during both daily and long-term operation.

The unit uses R32 refrigerant, which is widely used in modern air-conditioning systems. In addition to supporting efficient system performance, R32 has a lower global warming potential compared with some older-generation refrigerants.

The GCHV 9000 BTU WiFi air conditioner operates at a sound level starting from 19 dB at low fan speed, making it suitable for bedrooms, offices, study rooms, and other spaces where quiet operation is important. The fan speed and airflow can be adjusted according to the selected operating mode.

When Turbo mode is activated, the air conditioner operates at increased capacity to reach the desired temperature more quickly. Silent and Sleep modes reduce operating noise and help maintain a comfortable indoor temperature during the night.

The I FEEL function measures the temperature around the remote control and adjusts the operation of the air conditioner accordingly. This feature helps create a more comfortable temperature in the area where the user is located, rather than regulating the temperature only around the indoor unit.

Clean and Even Air Distribution

The GCHV V09-HR4-S40 air conditioner uses vertically and horizontally adjustable air louvers to distribute cooled or heated air more evenly throughout the room. The maximum airflow capacity is 450 m³/h.

The model series also includes a plasma filtration system, a self-diagnosis function, and error code display. The automatic diagnostic system helps identify possible faults more quickly and simplifies technical service and maintenance procedures.

This model is suitable for small and medium-sized residential and commercial spaces, including:

Bedrooms
Children’s rooms and home offices
Small apartments
Offices and private workrooms
Beauty salons and service rooms
Small shops and commercial premises

When selecting an air conditioner, it is important to consider not only the size of the room but also the ceiling height, window dimensions, sunlight exposure, thermal insulation, and the number of people regularly using the space.

Technical Specifications

Brand: GCHV
Model: GCHV V09-HR4-S40
Indoor unit: CCG-V09HR4-GSA-S40
Outdoor unit: COU-D09HR4-AA02-S40
Air conditioner type: Wall-mounted split system
Cooling capacity: 9000 BTU / 2.6 kW
Heating capacity: 2.8 kW
Compressor: DC Inverter
WiFi control: Yes
Refrigerant: R32
Cooling energy efficiency class: A++
Heating energy efficiency class: A+
SEER rating: 6.1
SCOP rating: 4.0
Minimum indoor unit sound level: 19 dB
Maximum airflow: 450 m³/h
Power supply: 230 V / single phase / 50 Hz
Cooling operating temperature: from −15°C to +48°C
Heating operating temperature: from −15°C to +24°C
Liquid pipe diameter: 6.35 mm — 1/4 inch
Gas pipe diameter: 9.53 mm — 3/8 inch
Maximum pipe length: 25 metres
Maximum height difference: 10 metres
