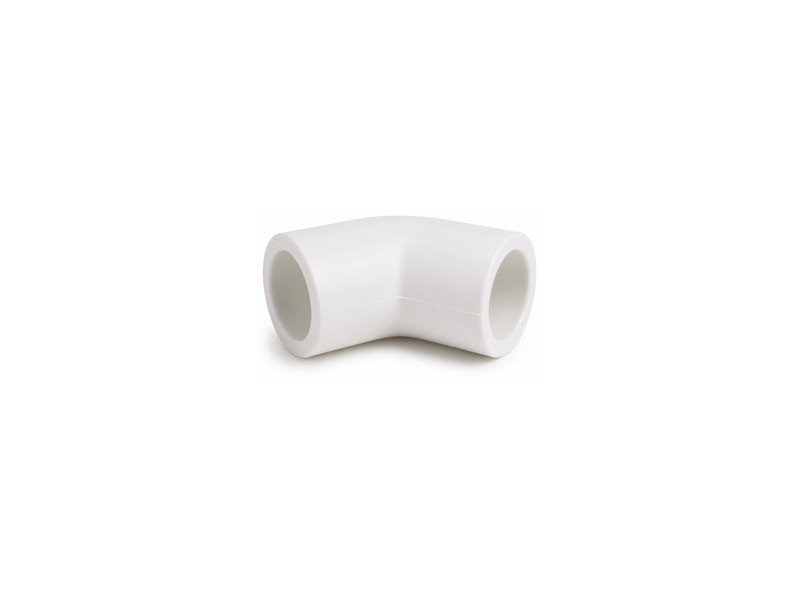

Formül PP-R Elbow 110 mm 45° — PPYD 110 (45)

Specifications

• Brand: Formül
• Product type: PP-R elbow
• Product code: PPYD 110 (45)
• Nominal size: 110 mm
• Material: PP-R — polypropylene random copolymer
• Bend angle: 45°
• Connection: Socket fusion at both ends
• Purpose: Forming a robust bend in principal water and technical pp-r mains
• Compatible systems: Hot and cold water, potable water, heating and suitable technical-fluid lines

The Formül PP-R Elbow 110 mm 45° (PPYD 110 (45)) is an angled pipe fitting designed for forming a robust bend in principal water and technical PP-R mains.

Both sockets are fusion-welded to compatible PP-R pipe with a 110 mm outside diameter, creating a 45-degree change of direction.

The 45° version should match the route specified in the installation plan, while the 110 mm nominal size must be checked against the pipe marking.

Before installation, cut the pipe square and keep all fusion surfaces clean and dry; heating and cooling times must follow the PP-R system instructions.

Correct socket fusion helps limit internal deformation, maintain stable flow and preserve the mechanical integrity of the joint during operation.

When ordering, verify product code PPYD 110 (45), the 110 mm size and the 45° angle together to avoid mixing visually similar elbow variants.
