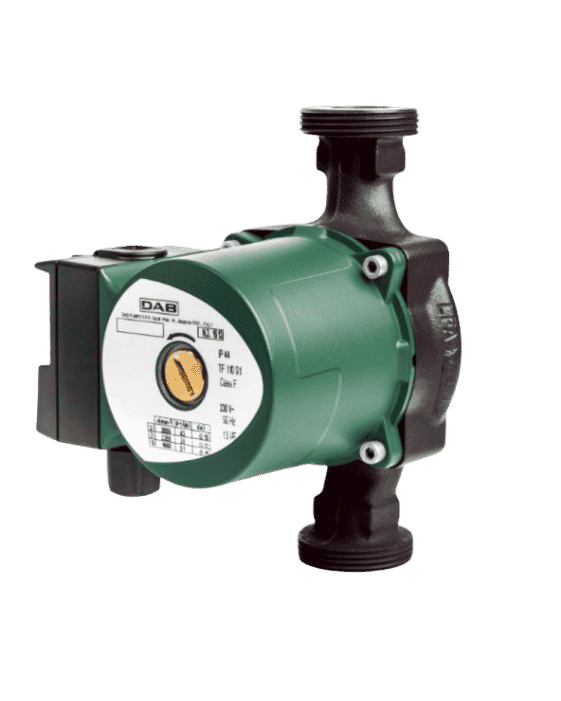

DAB VA 55/180 domestic circulation pump is designed to provide stable water circulation in private houses, apartments, boiler systems and radiator lines. It helps distribute heat more evenly in small and medium-sized heating circuits. For users looking for a practical circulation pump for boiler and radiator systems, this model is a reliable choice.
The pump operates with wet rotor technology, offering quiet and stable performance. DAB VA 55/180 has 3 speed levels, allowing the circulation power to be adjusted according to the real demand of the system. With 70 W maximum power consumption, it provides efficient operation for daily heating use.
This model is suitable for clean water and glycol-based liquids. It can operate with working pressure up to 10 bar and liquid temperature up to 110°C. IP44 protection class, F insulation class and compact dimensions make the pump safe, durable and easy to install.

Features

• Model: DAB VA 55/180
• Product type: Domestic circulation pump
• Maximum flow rate: 3.6 m³/h
• Maximum head: 5.4 m
• Maximum power: 70 W
• Voltage: 1x230V
• Nominal current: 0.3 A
• Maximum operating pressure: 10 bar
• Maximum liquid temperature: 110°C
• Protection class: IP44
• Insulation class: F
• Speed levels: 3
• Nominal rotation speed: 2400/1600/930 rpm
• Connection type: Threaded
• Connection size: 1 1/2” G
• Standard connection: 1
• Capacitor: 1.7 µF
• Installation length: 180 mm
• Height: 125.5 mm
• Length: 180 mm
• Width: 102.5 mm
• Weight: 2.6 kg
• Rotor type: Wet rotor
• Motor type: Asynchronous motor
• Application: Boiler systems, radiator lines, individual heating and air conditioning systems
